About the Asko DSD565
- 24 Inch Fully-Integrated Panel Ready Smart Dishwasher with 16 Place Settings
- 9 Wash Cycles
- 42 dBA Noise Level
- 3 Racks
- 3 Spray Arms
- 9 Spray Zones
- Super Cleaning System+™
- Aqua Safe™
- Kid Safe™
- Self-Cleaning Program
- Cutlery Power Zone
- Turbo Combi Drying™ and WiFi
Brand:
Width:
23 15/16"
Height:
32 1/4"
Color:
Panel Ready
Sound Level:
40 dB
WiFi:
Yes
Accepts Panels:
Yes
Control Style:
Fully Integrated
Stainless Steel Interior:
Yes
Water Softener:
No
Series:
50
Type:
Built In
ADA Compliant:
Yes
Panel ready dishwasher designed for your wishes. You'll need an ASKO fully integrated model if you want your appliance to blend in with the rest of your kitchen's décor. These appliances blend seamlessly into your kitchen, hiding neatly beneath your countertop and behind your cabinetry.
About ASKO
The combination of everyday functionalism, environmental concern and clean, pleasant lines is the principal hallmark of Scandinavian design - and that of ASKO. The fundamental idea is that carefully designed products should improve people's quality of life. To distinguish ourselves in a market of cluttered, complex and voluptuous designs, we aim for a soft, humanistic minimalism based on the principle of quiet being the new loud. The key elements of Scandinavian design - understated elegance, high-quality craftsmanship and natural materials - are reflected in ASKO's design language.
Key Features
Super Cleaning System™
- Rinse the dishes. Clean the interior, including the filter. Choose the best program.
- How many steps is that One - and we call it the Super Cleaning System - or our best invention.
8 Steel™ - More Steel Less Plastic
- The main components of ASKO's dishwashers are manufactured using high-quality steel instead of plastic. We think that quality is paramount, and we think you do the same.
Aqua Safe™ System
- Do you hesitate to leave the dishwasher on while you are not at home Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.
Flexiracks™
- ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.
XL Dishwashers
- Our XL dishwashers have a loading height of 21-1/4".
- Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Light Lock™
- Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.
Self Cleaning
- ASKO's dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned.
- Use a recommended cleaning agent and the program on a regular basis for best result.
Vase/Bottle Holder
- Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.
Top Cutlery Tray
- The top tray for cutlery and kitchen utensils is easy to remove for easy unloading.
- With a width of 12-3/4" the centered tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray.
- And with the Instant Lift™ you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Time Program
- When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have.
- The program then adjusts washing and rinsing to match your needs.
Status Light™
- ASKO's new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.
Brushless Motor
- A brushless motor is not only quieter and more reliable. It also consumes less energy.
- You want your dishwasher to work forever. So do we.
Green Mode
- The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let's go greener!
Speed Mode
- When you need to get things cleaned in a hurry, the Speed mode is useful.
- It saves up to 50% of the normal time, by using more water and increased heating.
Night Mode
- Night mode reduces the noise with 2 dB thanks to lower pressure in the spray arm.
Auto Wash
- ASKO's Auto Wash with the SensiClean™ sensor ensures the right temperature, washing cycle and drying regardless of what you have put in the machine. Every time.
Quick Pro Wash
- Sometimes you need to use the same kitchen ware with short intervals. The Quick Pro Wash program only takes half an hour - perfect at the dinner party or when you bake.
Rinse & Hold
- The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded.
- Saves time and energy over time.
Aqua Level™ Sensor
- The Aqua Level™ Sensor ensures an optimized water level, even if a bowl turns over and is filled with water.
- It also keeps the machine from starting if the water is turned off.
Aqua Detect™ Sensor
- The Aqua Detect™ Sensor monitors the inlet valves and the water level while the machine operates.
- For safety reasons, the drain pump's capacity is five times the inlet valve's.
Power Zone Cutlery™
- Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean.
- And, there is a similar nozzle for the knife basket.
Kid Safe™
- To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock.
- This also prevents altering any settings by mistake.
Anti Siphon
- For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine.
- This is especially important if the dishwasher is placed above floor level.
Extra Wide Knife Stand
- Our smart knife holders are found in the middle, upper, and the top basket. They are all are extra deep so that the blades remain steady. Cutting edge, not fingers.
InstantLift™
- Our InstantLift™ height adjustment system, allows for freeing up between 40 and 58 mm in the upper basket.
- A simple and flexible way to make room for it all.
9 Spray™
- ASKO's spray system consists of up to 9 effective spray zones to ensure a totally clean load.
- In the lower rack there are three power zones to take care of the dirtiest parts.
3 Level Rack
- ASKO's three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, tines and cutlery basket to meet your every need.
Folding Tines
- The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.
Foldable Glass Support
- Sometimes you need the space of the upper rack for other items than glasses. Good thing that the tines are foldable here as well.
Telescopic Rails
- ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly.
- For easy loading and unloading, you can also take out the whole rack.
Sliding Door
- The sliding door solution makes mounting the front door in line with the kitchen cabinetry possible. With long doors, the kick-plate will not get in the way.
3 Spray Arms
- The 3 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagna baking dish.
Condensation Dry
- ASKO dishwashers are some of the most advanced in the world. They're packed with innovative features that make light work of all types of loads.
- Like our pre-rinse that saves you having to clean dishes before loading. Also, our Turbo Drying system that rapidly extracts condensation after the final wash so your dishes dry much faster.
- All these handy features help to make ASKO dishwashers a favorite around the World.
16 Loading Capacity
- The world's biggest load capacity.
- The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load.
- The width of the top cutlery tray has been optimized to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.
China Guard
- Our china guard ensures secure rotation of the upper sprayarm.
Pop Out Door
- When a program is completed, the Door Pop-Out function opens the dishwasher door automatically to remove the steam inside.
Knife Holders
- Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can.
- Our knife holder is extra deep so that the blades remain steady throughout the wash cycle.
- There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Multi Position Glass Rack
- The Multi position glass rack is a very practical rack that can be mounted in three different positions - all depending on your needs.
Focus Points - A Hint of Nature
- Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first.
- Then it may be one of the machine's many clever features.
- These are highlighted with a color that mimics the ways in which nature brings focus to things.
- Closing the door puts the machine back in its place - where it doesn't compete for space or attention - instead, it makes the room.
Adjustable Power Zones
- To make an already powerful cleaning system even more powerful, we have created two adjustable "power zones with two different spray patterns.
- The power zones either produce a concentrated high-pressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans.
- There's also a "bridging function where both power zones are set to the wide spray mode for very large dishes or utensils.
- The power zones are operated manually, so when you don't need them simply switch them off.
Connected
- The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet.
- You can look up the online user manual, change settings, check the machine's status and more.
- You can even start, stop and pause programs on the move.
- The app includes a step-by-step guide to help you find the best programs for you depending on what you're washing and how you prefer to wash it.
Quick Pro
- A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter - as fast as 39 minutes.
Logic Series
- If you approach new technology with logic and reason, you will find our Logic family of dishwashers satisfying and natural to use.
- All Logic models have a clean minimalistic design that is both elegant and easy on the eye. The integrated, fully graphical (FFSTN) display is conveniently positioned on top of the door.
20 Years - Designed to Last
- Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet.
- Designed to make a difference. And built to be enjoyed for the next 20 years.

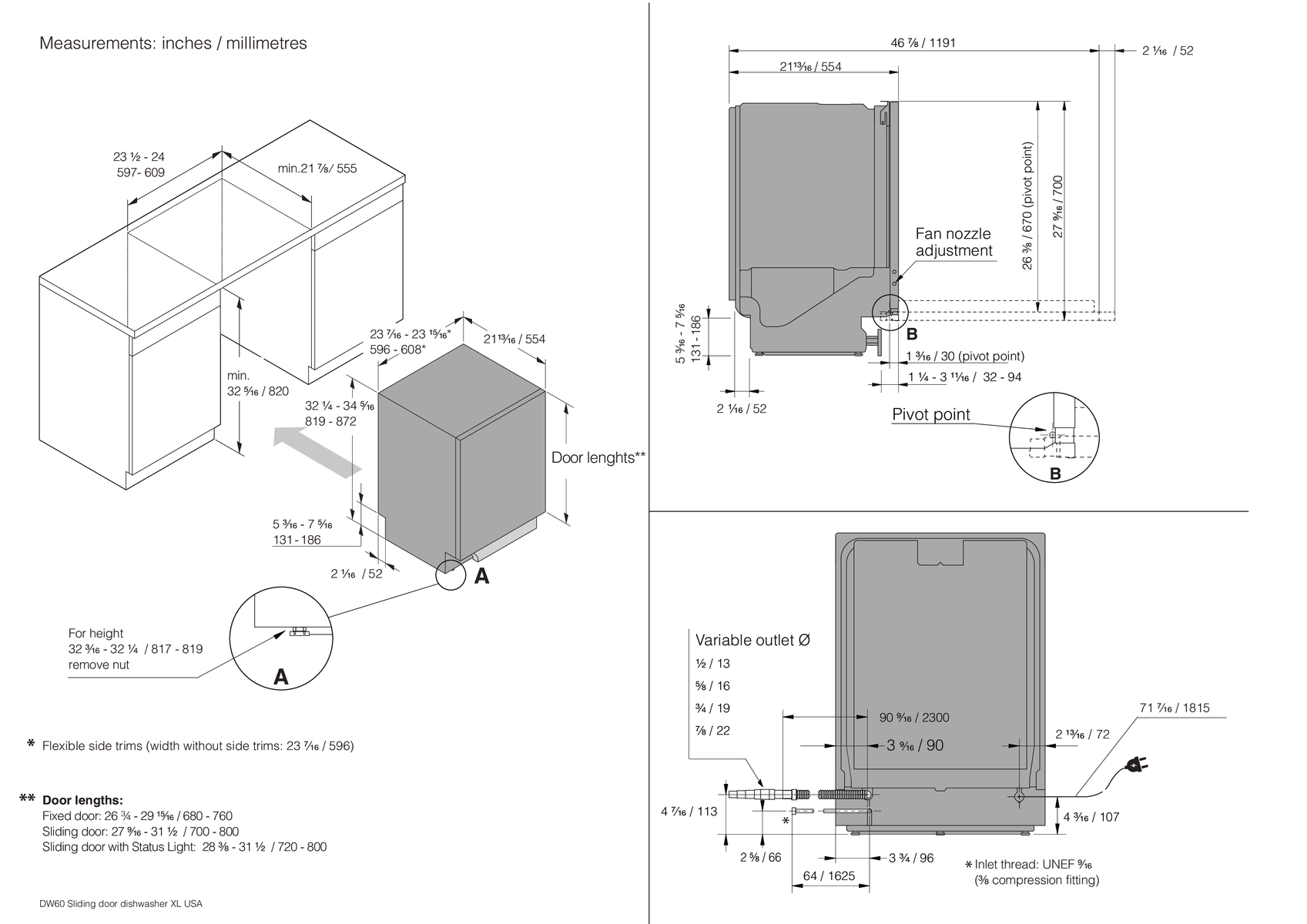

DSD565 Dimension Guide
DSD565 Energy Guide
Specifications
Product Information
Brand
Asko
Model
DSD565
Features
Electronic Display
Yes
Control Style
Fully Integrated
Adjustable Upper Rack
No
Fold-Down Tines
Yes
Cutlery Tray
Yes
Stemware Holder
Yes
Tall Tub
Yes
Stainless Steel Interior
Yes
Control Type
Touch Sensor
Number of Spray Arms
3
Rinse Aid Dispenser
Yes
Auto Detergent Dispenser
Yes
Cup Shelves
Yes
Water Heating
Yes
Leveling Legs
Yes
Interior Light
Yes
Third Rack Type
Cutlery Tray
Appearance
Accepts Panels
Yes
Color
Panel Ready
Type
Built In
Dimensions
Width
23 15/16 Inch
Depth
21 13/16 Inch
Height
32 1/4 Inch
Cutout Width
24 Inch
Cutout Depth
21 7/8 Inch
Cutout Height
32 5/16 Inch
Capacity
Capacity
16 Place Settings
Technical Details
ADA Compliant
Yes
Amps
15
Voltage
120 Volts
Watts
1,300 Watts
Warranty Info
Parts
5 Year
Labor
5 Year
GTIN
EAN
3838782650666
Wash Features
Rinse & Hold
Yes
Leak Protection
Yes
Sound Level
40 dB
Cycles
9
Options
6
Delay Start
Yes
High Temperature Wash
Yes
Quick Wash Setting
Yes
Sanitize Cycle
Yes
Steam Wash
Yes
Sensor Clean
Yes
Dry Type
Heated & Vented
China/Crystal Setting
Yes
Smart
WiFi
Yes
App Integration
ConnectLife App
Specifications:
Water Softener
No
Dimensions & Weight
Packaging width
25 3/16"
Depth
21 13/16"
Maximum product height
34 5/16"
Length of electrical cord
71 7/16"
Depth with door open
48 15/16"
Height
32 1/4"
Width
23 15/16"
Packaging height
35 1/16"
Packaging depth
26 3/4"
Net weight
90.4 lbs.
Gross weight
97 lbs.
Additional Specs
Indication of low level of rinse-aid
Notification in display
Type of display
LCD display
Status Light™
Yes
Interior light
Yes, 2 LED Lights
Number of place settings
16 pcs
Number of racks
3
Number of spray arms
3 pcs
Number of spray zones
9
Automatic dosing system
No
Lower rack
Foldable/dividable front & rear pin row / Vase/bottle holder / Cutlery basket / Handle with ASKO logo / Sliding tines
Lower rack type
Exclusive
Upper basket
Telescopic Rails / Light Lock™ / China Guard / Extra wide knife stand / dividable pin rows / Handle with ASKO logo / Foldable wine shelves to right / Dividable/foldable wine shelves to left
Upper rack height adjustable
Yes
Upper rack type
Exclusive, all tines are foldable / Foldable wine shelves / Light Lock™
Top tray
Easy height adjustment / Telescopic Rails / Handle / Guide Rails with Ball Bearings / Removable
WiFi
Yes, Integrated
Water Softener
No
General
Series
50
Manufacturer
Asko
Technical Data
Water connection
Hot & Cold Water
Adapter for water connection
No
Max. temperature of inflow water
140 °F
Noise level (max)
40 dB(A)
Connected load
1300 W
Voltage (V)
120 V
Fuse
15 A
Frequency
60 Hz
