Frequently Bought Together
2 Item(s)
-
HCP56652UC Bosch 500 Series 36 Pyramid Canopy Chimney Hood, 600 CFM$1,849.00 Save $200.00$1,649.00 -

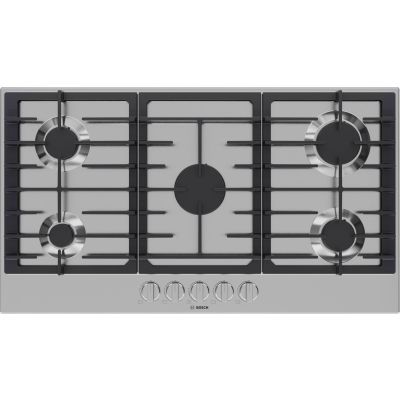

About the Bosch NGM3650UC
- 36 Inch Gas Cooktop with 5 Sealed Burners
- Continuous Grates
- 16000 BTU Burner
- Low-Profile Design
- FlameSafe®
- ADA Compliant
Brand:
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
36"
Height:
1 49/64"
Depth:
20 1/2"
Cutout Width:
33 1/2"
Cutout Depth:
19 1/3"
Volts:
120 Volts
Amps:
15
The NGM3650UC Gas Cooktop by Bosch is a sleek and stylish addition to any kitchen. With its stainless steel design, it not only enhances the aesthetic appeal of your cooking space but also provides exceptional performance and durability. Whether you're a professional chef or a home cook, this gas cooktop offers the perfect combination of power and precision to elevate your culinary creations to the next level.
About Bosch
Engineers at Bosch relish a challenge. They prize the ability to overcome technological obstacles in order to produce precise, powerful appliances that perform better, are more intuitive, and use fewer resources while delivering world-class performance. Moreover, they aren't afraid of the exacting work it takes to produce elegant, stylish products with the most advanced technology available. With Bosch, you get consistently superior performance and an appearance to match.
Key Features
5 Sealed Burners
- 5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.
- Prevent spills from entering the burner box.
Continuous Grate
- The continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
16,000 BTU Burner
- Powerful 16,000 BTU burner for boiling, searing, and stir-frying.
Easy To Clean, Low-Profile Design
- The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.
FlameSafe®
- The Thermocouple sensing device will switch off the supply of gas if the flame temporarily extinguishes.
Manuals & Downloads
NGM3650UC Installation Instructions
NGM3650UC Specification Sheet
NGM3650UC User Manual
Specifications
GTIN
EAN
0825225969792
UPC
825225969792
Burner
Simmer Burner
Yes
Power Burner
Yes
Burner 1 Output
3400 BTU (front left)
Burner 2 Output
6000 BTU (back left)
Burner 5 Output
6000 BTU (front right)
Burner 4 Output
9010 BTU (back right)
Burner 3 Output
16000 BTU (center)
Smart
WiFi
No
Dimensions
Cutout Depth
19 1/3 Inch
Cutout Width
33 1/2 Inch
Actual Height
1 49/64 Inch
Actual Depth
20 1/2 Inch
Actual Width
36 Inch
Appearance
Downdraft Venting
No
Fingerprint Resistant
No
Glass Surface
No
Surface Color
Stainless Steel
Color
Stainless Steel
Controls Location
Top
Control Type
Knobs
Type
Drop-In
Style
Sealed Burner
Number of Burners
5
Fuel Subtype 2
LP Convertible
Fuel Subtype
Natural Gas
Fuel Type
Gas
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
ADA Compliant
Yes
Gas Cooktop Features
French Top
No
Griddle
No
Grill
No
Cooktop Accessory
No Accessory
Continuous Grates
Yes
Element Performance
Power of front right burner (NG / LP)
6,000 / 6,000
Power of back right burner (NG / LP)
9,010 / 9,010
Power of center burner (NG / LP)
16,000 / 16,000
Power of back left burner (NG / LP)
6,000 / 6,000
Power of front left burner (NG / LP)
3,400 / 3,400
Total BTU load (NG / LP)
40,410 / 40,410
General Properties
Grate features
Continuous grates
Grate material
Cast iron
Cooktop surface material
Stainless steel
Ignition system
Electronic; thermocouple flame monitor control
Valves
Gas
Sealed burners
Yes
Control location
Front-center
Knob color
Stainless steel appearance
No. of burners
5
Technical Details
Circuit breaker
15 A
Volts
120 V
Frequency
60 Hz
Convertible to LP (kit required)
Yes
Energy source
Natural Gas (factory set)
Power cord length
40"
Plug type
3-prong
Product Information
Model
NGM3650UC
Brand
Bosch
Accessories
Accessories-Included
LP Conversion Kit
Dimensions & Weight
Shipping Weight
47 lbs.
Net Weight
42 lbs.
Minimum distance from the rear wall
3"
Minimum distance from counter front
1 7/8"
Required cutout size (HxWxD)
1 49/64" x 33 1/2" x 19 1/3"
Overall appliance dimensions (HxWxD)
1 49/64" x 36" x 20 1/2"
General
Series
300
Manufacturer
Bosch
